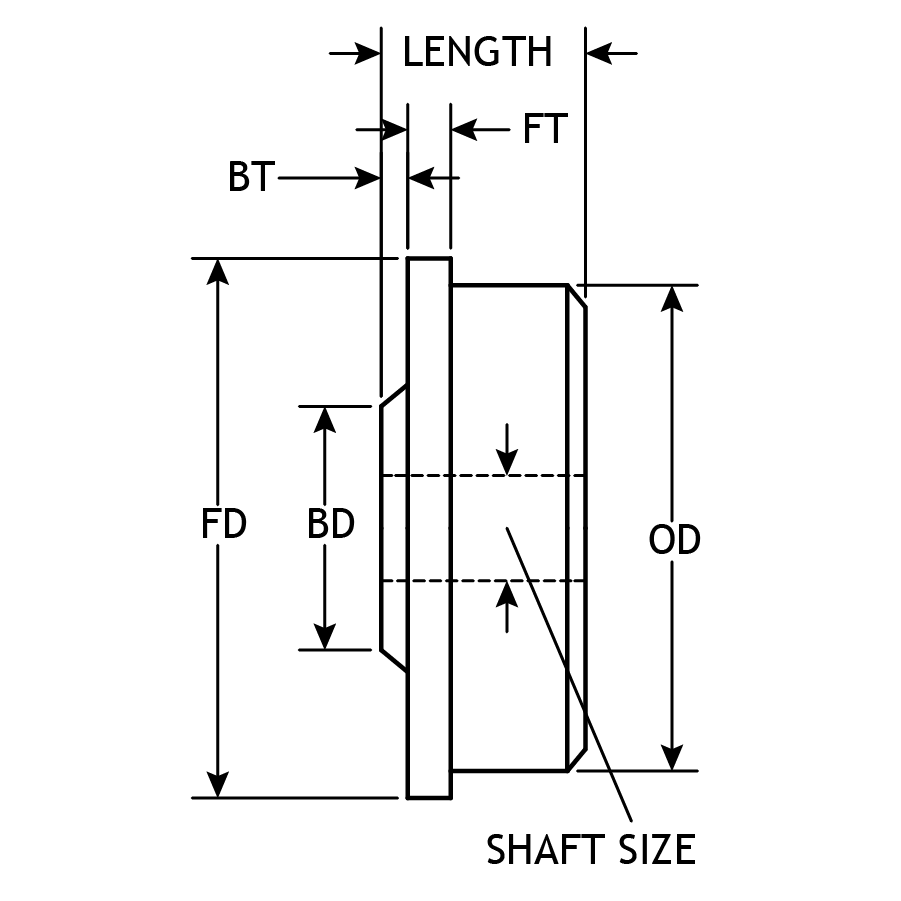

Light Duty Roll End Bearings
| Part No. | Bore/Shaft Size | Tubing Gauge | OD | Material Code | Type | Length | Material | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| LDB40P80 | Shaft Size = | Sch. 80 | 2.323 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB40P40 | Shaft Size = | Sch. 40 | 2.469 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB44T14 | Shaft Size = | 14 | 2.584 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB44T16 | Shaft Size = | 16 | 2.62 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB44T18 | Shaft Size = | 18 | 2.652 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB40T16 | Shaft Size = | 16 | 2.37 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB40T18 | Shaft Size = | 18 | 2.402 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB40T20 | Shaft Size = | 20 | 2.43 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32P80 | Shaft Size = | Sch. 80 | 1.939 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32P40 | Shaft Size = | Sch. 40 | 2.067 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32P10 | Shaft Size = | Sch. 10 | 2.157 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB36T16 | Shaft Size = | 16 | 2.12 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB36T18 | Shaft Size = | 18 | 2.152 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB36T20 | Shaft Size = | 20 | 2.18 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32EMT | Shaft Size = | 2" EMT | 2.067 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32T16 | Shaft Size = | 16 | 1.87 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32T18 | Shaft Size = | 18 | 1.902 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB32T20 | Shaft Size = | 20 | 1.93 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24P80 | Shaft Size = | Sch. 80 | 1.5 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24P40 | Shaft Size = | Sch. 40 | 1.61 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB31T16 | Shaft Size = | 16 | 1.77 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB30T16 | Shaft Size = | 16 | 1.745 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB30T18 | Shaft Size = | 18 | 1.777 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB30T20 | Shaft Size = | 20 | 1.805 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB28T16 | Shaft Size = | 16 | 1.62 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB28T18 | Shaft Size = | 18 | 1.652 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB28T20 | Shaft Size = | 20 | 1.68 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24EMT | Shaft Size = | 1-1/2" EMT | 1.61 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB20P80 | Shaft Size = | Sch. 80 | 1.278 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB20P40 | Shaft Size = | Sch. 40 | 1.38 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB26T16 | Shaft Size = | 16 | 1.495 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB26T18 | Shaft Size = | 18 | 1.527 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB26T20 | Shaft Size = | 20 | 1.555 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB20EMT | Shaft Size = | 1-1/4" EMT | 1.38 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24T16 | Shaft Size = | 16 | 1.37 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24T18 | Shaft Size = | 18 | 1.402 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB24T20 | Shaft Size = | 20 | 1.43 | B | Light Duty Roll End Bearings | 1" | Wood | ||
| LDB22T16 | Shaft Size = | 16 | 1.245 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB22T18 | Shaft Size = | 18 | 1.277 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB16P80 | Shaft Size = | Sch. 80 | 0.957 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB16P40 | Shaft Size = | Sch. 40 | 1.049 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB21T16 | Shaft Size = | 16 | 1.182 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB20T16 | Shaft Size = | 16 | 1.12 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB20T18 | Shaft Size = | 18 | 1.152 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB20T20 | Shaft Size = | 20 | 1.43 | B | Light Duty Roll End Bearings | 3/4" | Wood | ||
| LDB16EMT | Shaft Size = | 1" EMT | 1.049 | B | Light Duty Roll End Bearings | 11/16" | Wood | ||
| LDB18T16 | Shaft Size = | 16 | 0.995 | B | Light Duty Roll End Bearings | 11/16" | Wood | ||
| LDB18T17 | Shaft Size = | 17 | 1.009 | B | Light Duty Roll End Bearings | 11/16" | Wood | ||
| LDB12P80 | Shaft Size = | Sch. 80 | 0.742 | B | Light Duty Roll End Bearings | 11/16" | Wood | ||
| LDB12P40 | Shaft Size = | Sch. 40 | 0.824 | B | Light Duty Roll End Bearings | 11/16" | Wood |
