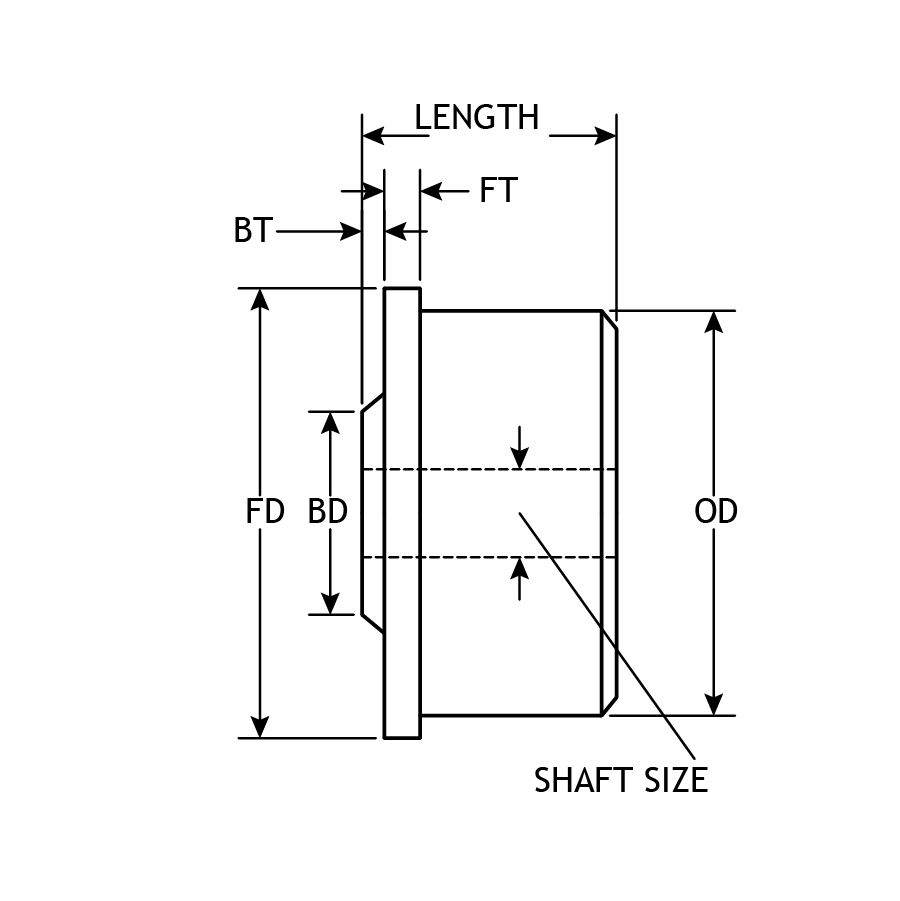

Standard Roll End Bearings
| Part No. | Bore/Shaft Size | Tubing Gauge | OD | Material Code | Type | Length | Material | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| STB96P80 | Shaft Size = | Sch. 80 | 5.761 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB96P40 | Shaft Size = | Sch. 40 | 6.065 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB96T11 | Shaft Size = | 11 | 5.76 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB80P80 | Shaft Size = | Sch. 80 | 4.813 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB80P40 | Shaft Size = | Sch. 40 | 5.047 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB88T11 | Shaft Size = | 11 | 5.26 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB80T11 | Shaft Size = | 11 | 4.76 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64P80 | Shaft Size = | Sch. 80 | 3.826 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64P40 | Shaft Size = | Sch. 40 | 4.026 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64EMT | Shaft Size = | 4" EMT | 4.334 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB72T11 | Shaft Size = | 11 | 4.26 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB56P80 | Shaft Size = | Sch. 80 | 3.364 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB56P40 | Shaft Size = | Sch. 40 | 3.548 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64T11 | Shaft Size = | 11 | 3.76 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64T13 | Shaft Size = | 13 | 3.81 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64T14 | Shaft Size = | 14 | 3.834 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB64T16 | Shaft Size = | 16 | 3.87 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB60T11 | Shaft Size = | 11 | 3.51 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB60T16 | Shaft Size = | 16 | 3.62 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48P80 | Shaft Size = | Sch. 80 | 2.9 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48P40 | Shaft Size = | Sch. 40 | 3.068 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48EMT | Shaft Size = | 3" EMT | 3.356 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB56T11 | Shaft Size = | 11 | 3.26 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB56T13 | Shaft Size = | 13 | 3.31 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB56T16 | Shaft Size = | 16 | 3.37 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB52T13 | Shaft Size = | 13 | 3.06 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB52T16 | Shaft Size = | 16 | 3.12 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T11 | Shaft Size = | 11 | 2.76 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T12 | Shaft Size = | 12 | 2.782 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T13 | Shaft Size = | 13 | 2.81 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T14 | Shaft Size = | 14 | 2.834 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T16 | Shaft Size = | 16 | 2.87 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB48T18 | Shaft Size = | 18 | 2.902 | B | Standard Roll End Bearings | 1-3/4" | Wood | ||
| STB40P80 | Shaft Size = | Sch. 80 | 2.323 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40P40 | Shaft Size = | Sch. 40 | 2.469 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB46T11 | Shaft Size = | 11 | 2.635 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB44T11 | Shaft Size = | 11 | 2.51 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB44T13 | Shaft Size = | 13 | 2.56 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB44T16 | Shaft Size = | 16 | 2.62 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB44T18 | Shaft Size = | 18 | 2.652 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T10 | Shaft Size = | 10 | 2.232 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T11 | Shaft Size = | 11 | 2.26 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T12 | Shaft Size = | 12 | 2.282 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T13 | Shaft Size = | 13 | 2.31 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T14 | Shaft Size = | 14 | 2.334 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T16 | Shaft Size = | 16 | 2.37 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB40T18 | Shaft Size = | 18 | 2.402 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB32P80 | Shaft Size = | Sch. 80 | 1.939 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB32P40 | Shaft Size = | Sch. 40 | 2.067 | B | Standard Roll End Bearings | 1-5/8" | Wood | ||
| STB32P10 | Shaft Size = | 10 | 2.157 | B | Standard Roll End Bearings | 1-5/8" | Wood |
